Seismic Microzonation in Drogheda: Site Response Without Guesswork

A common mistake we see in Drogheda is treating the whole town as a single seismic zone. It is not. The Boyne estuary cuts through layered glacial deposits. Till, sands, and gravels change within a few hundred metres. Two sites on opposite sides of the river can shake completely differently. The planning authority now asks for site-specific ground response analysis for taller structures. Without a proper microzonation, the design spectrum is just a guess. And guessing costs money later. In practice, you need measured Vs30 values and borehole logs tied to a ground model. That is exactly what we deliver. For deep alluvial pockets near the quays, a CPT test helps us track the soft layers without disturbing the sample structure.

Two boreholes on the same street in Drogheda can give Vs30 values that differ by 100 m/s. The code spectrum covers neither.

Methodology and scope

The damp east-coast climate of Drogheda means the glacial till stays wet almost all year. High moisture content lowers the shear modulus of the upper 5 to 10 metres. We account for this in the amplification analysis. A dry summer does not mean the soil behaves like a stiff crust. The water table here rarely drops below 2 metres in the town centre. Our approach combines downhole Vs measurements with laboratory dynamic triaxial on undisturbed samples. The result is a site class map that reflects the real stratigraphy, not a regional default. In our experience, sites east of the Dublin Road often sit on softer, more compressible layers. A MASW survey across the site reveals the true stiffness profile before any structural model is built.

Local considerations

The bedrock under Drogheda is Lower Palaeozoic shale and greywacke, but it is rarely shallow. Decades of site investigation across the town show drift thicknesses of 15 to 40 metres. That overburden is not uniform. Glacial lake clays sit beneath river terrace gravels in several central areas. These soft layers amplify ground motion at periods that match mid-rise building response. The biggest risk is a resonance effect nobody modelled. We have seen cases where a site was assumed Class C, but the Vs30 profile placed it firmly in Class D. That changes the base shear by over 30%. A microzonation study catches these discrepancies before structural design locks in. It also forces the geotechnical team and the structural engineer to work from the same ground model, which reduces coordination errors during detailed design.

Technical parameters

Parameter	Typical value
Vs30 mapping resolution	50 m grid (typical)
Depth of investigation	30–60 m below GL
Site class (EC8)	B to D in Drogheda
Test method	MASW, cross-hole, DMT
Ground model	3D stratigraphic model
Input motion	Uniform Hazard Spectrum
Analysis type	1D equivalent-linear (SHAKE)
Output	Design spectrum per borehole

Associated technical services

Site Response Analysis

1D equivalent-linear analysis using measured Vs profiles and local input motions. We deliver a design response spectrum per borehole.

Vs30 Profiling

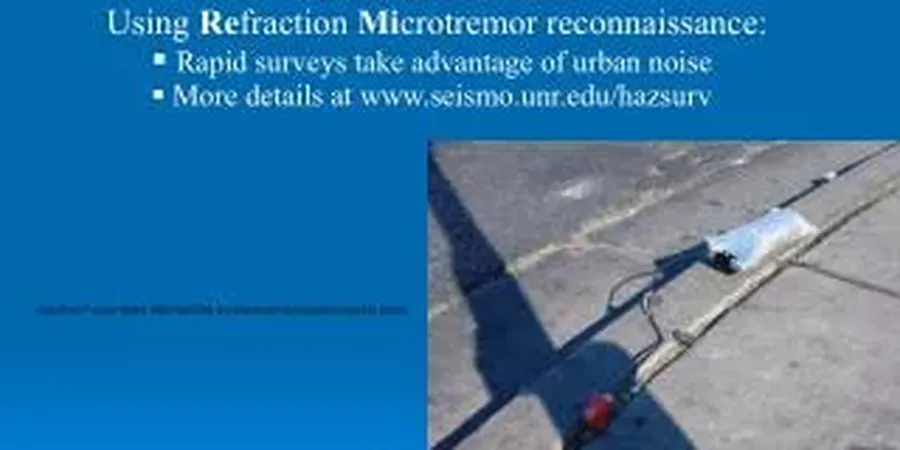

Active and passive surface wave testing to map shear-wave velocity across the site. Essential for EC8 site classification.

Ground Model Development

3D stratigraphic model built from borehole logs and geophysical lines. Captures lateral transitions in the glacial sequence.

Liquefaction Screening

SPT- and CPT-based screening for loose saturated sands. Relevant for low-lying areas near the Boyne where the water table is high.

Frequently asked questions

When does a Drogheda development need a seismic microzonation study?

In our experience, it is requested for buildings over 15 metres, structures with irregular mass distribution, and anything with a large occupancy. The planning department may also ask for it if the site sits on known soft ground in the town centre or near the river. It is not a standard requirement for single-family homes unless the site is on made ground.

How much does a seismic microzonation study cost in Drogheda?

The cost ranges from €3,240 to €15,180. A small site with two boreholes and a MASW line sits at the lower end. A larger commercial plot needing a 3D model, dynamic lab tests, and full ground response analysis moves toward the upper end.

What is the difference between a regional hazard map and a site-specific microzonation?

A regional map gives you a broad idea, typically at a 1:50,000 scale or coarser. It does not see the till-lens that crosses your plot. A site-specific microzonation uses your own borehole data, your own Vs profiles, and your own ground model. The design spectrum is yours, not an average for County Louth. That is the difference between a safe design and one that just ticks a box.

How long does the field work and reporting take?

Field work for two to three seismic lines and a few CPTs takes about a week on site. Lab testing on undisturbed samples adds another two weeks. The ground model and response analysis take about three weeks of engineering time. From mobilisation to final report, plan on five to six weeks for a typical mid-site job.
